About J-Frond Villa, Palm Jumeirah
Stonehaven was appointed by a Private Client in 2022 to provide post contract project management and cost consultancy services for this best-in-class villa located in one of the Middle East’s most exclusive locations. Stonehaven managed and administered all consultants consisting of lead design, international specialist design and supervision as well as the main contractors. The main contract consisted of several provisional sums which Stonehaven procured subject to competitive tendering to achieve best value for the Private Client. The villa consisted of a basement, ground floor and two upper floors on a plot area is 2,900m2 with an approximate built-up area of 4,000m2. The project consisted of piling, substructure, superstructure, mechanical and electrical, specialist façade, interior fit out, swimming pool and landscape.
Detailed Design
Created in REVIT at LoD 400 for precise modelling.
Advanced Coordination
Fully synchronised using Navisworks and Openspace AI.
Sustainable Systems
Off-grid solar panels, energy storage, and EV charging integrated.

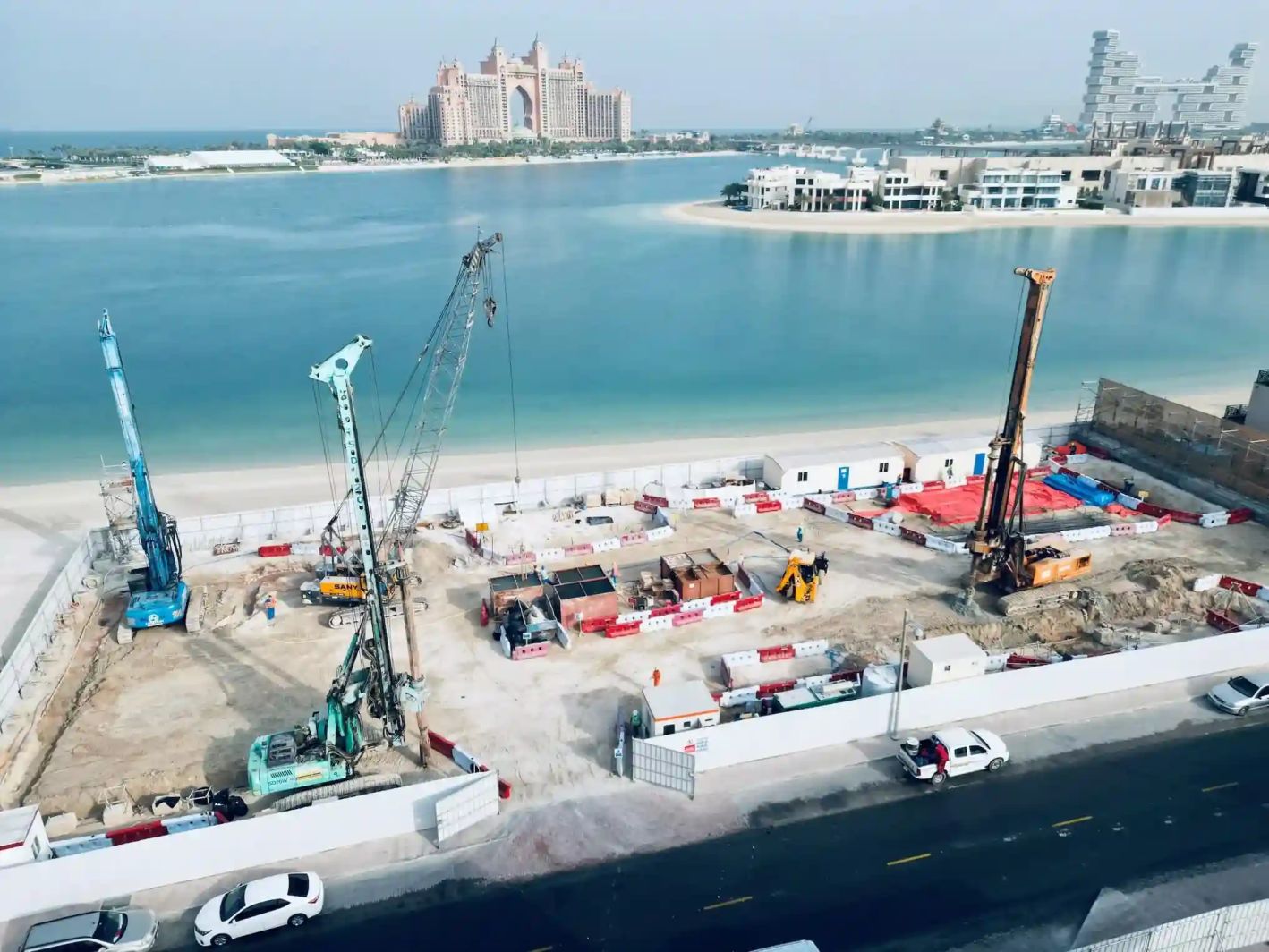

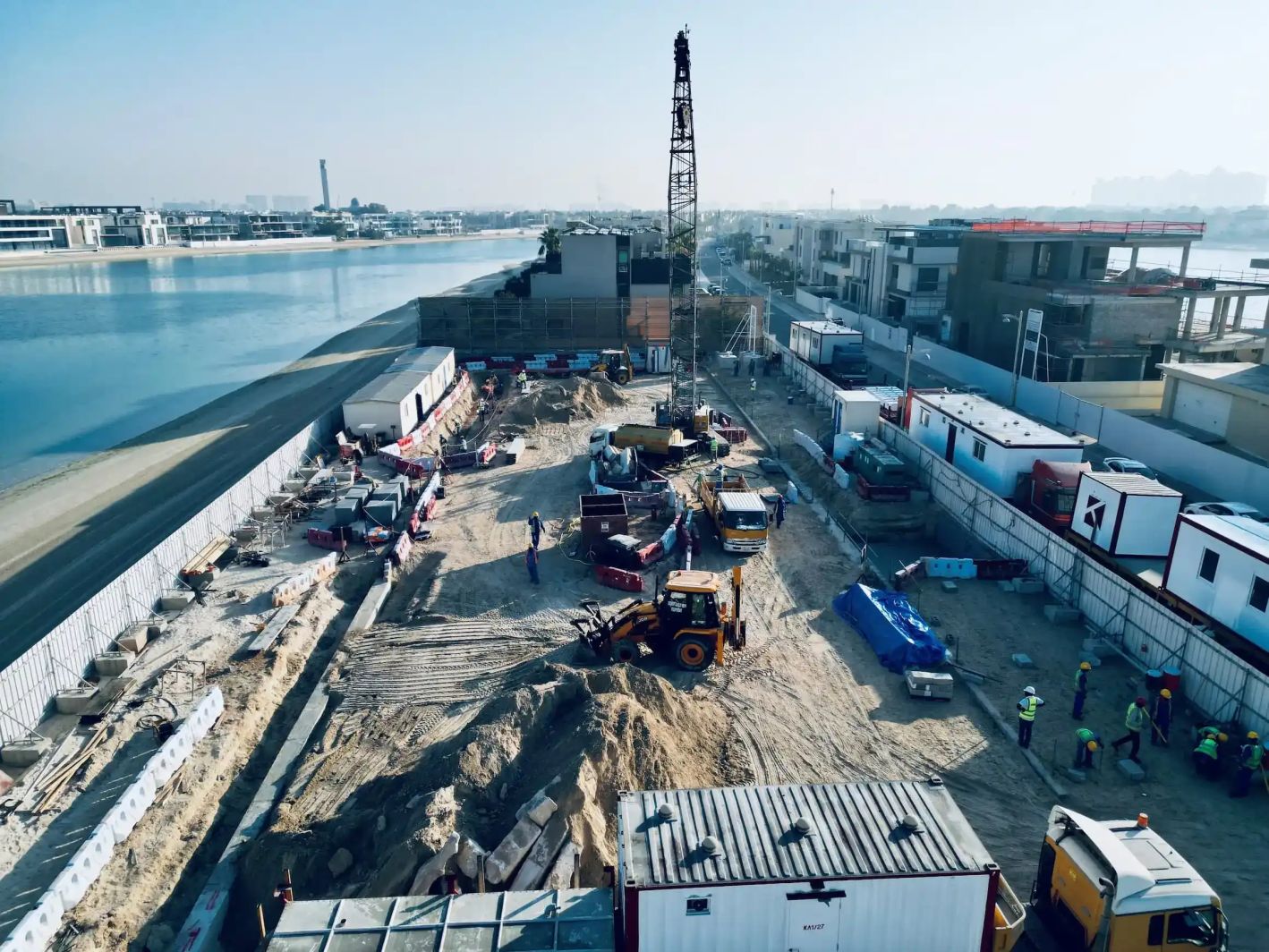

Expansive Excavation
3,400m² BUA with basement parking for 14 cars, excavated 3m below sea level. (6,000m³ of soil)
Detailed Design
Created in REVIT at LoD 400 for precise modelling.
Sustainable Systems
Off-grid solar panels, energy storage, and EV charging integrated.
Sustainable Systems
Off-grid solar panels, energy storage, and EV charging integrated.
Expansive Excavation
3,400m² BUA with basement parking for 14 cars, excavated 3m below sea level. (6,000m³ of soil)
